CRA Headquarters

  • CRA Headquarters

    East elevation of the Data Centre

  • CRA Headquarters

    Detail of the Data Centre's elevational depth

  • CRA Headquarters

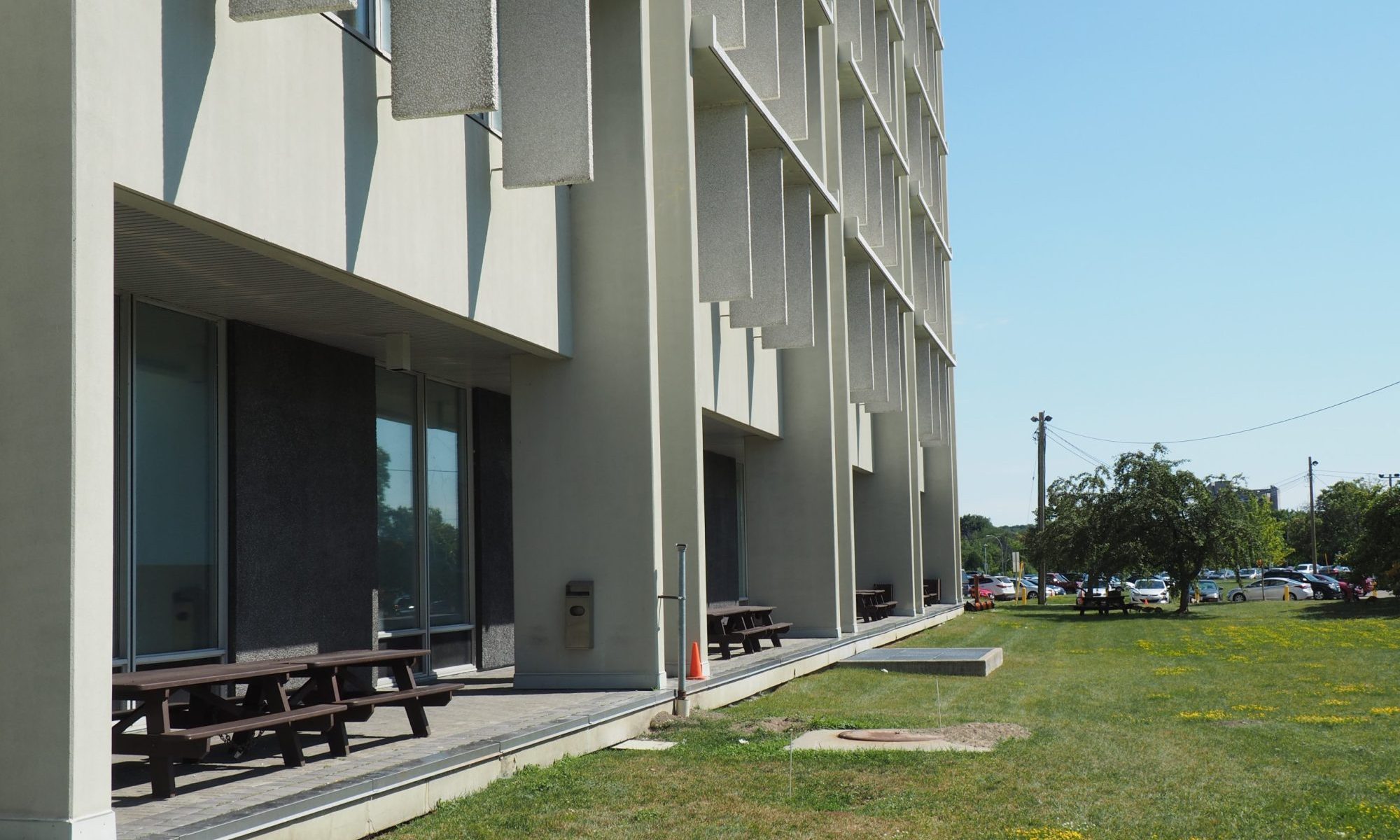

    Looking east along the south elevation of the Data Centre

  • CRA Headquarters

    Looking south towards the Data Centre with the east end of the Headquarters in the foreground

  • CRA Headquarters

    Detail of a vertical screen

  • CRA Headquarters

    Under the Data Centre's logia

  • CRA Headquarters

    Detail of the Data Centre vertical screens

  • CRA Headquarters

    Looking towards the Headquarters from the east entrance

  • CRA Headquarters

    West entrance with the Headquarters visible beyond

  • CRA Headquarters

    South elevation of the Headquarters

  • CRA Headquarters

    South elevation of the Headquarters

  • CRA Headquarters

    North elevation of the Headquarters without vertical screens

  • CRA Headquarters

    East entrance looking north

  • CRA Headquarters

    Base of the Headquarters building (North Elevation)

  • CRA Headquarters

    Detail of the textured precast used for the vertical screens

  • CRA Headquarters

    Corner detail of the Headquarters

  • CRA Headquarters

    Looking towards the Headquarters with the Cafeteria in the foreground

  • CRA Headquarters

    Cafeteria pavilion

  • CRA Headquarters

    Cafeteria visible beyond the roof of the loading dock

Address
875 Heron Road, Ottawa, ON
Type
Year(s)
1970

Located on the edge of Confederation Heights, one of the major decentralized Federal Government office nodes constructed as part of the Greber Plan, the CRA complex at 875 Heron Road was built to accommodate a growing workforce.  To accommodate these needs Page + Steele along with Moody Moody and Partners designed a complex of connected buildings with a consistent material palette.  Exterior cladding materials include white and black precast concrete panels, white-painted poured-in-place concrete, black transom panels and glass.  Also reinforcing the relationship between the various pieces is an emphasis on mass evident through materials and layered elevations.  Although the building demonstrates some of the tendencies of Brutalism, however the choice to finish the concrete, used throughout the complex as both a structural and cladding material, in white paint deviates from the more common approach of leaving the concrete in its raw state.

In total there are 4 built components that make up the complex:  the Data Centre, the Headquarters, the Entrance Link and the Cafeteria.  While the four pieces are related, they also have their own individual character.  The Data Centre, at 10 storeys, is the tallest of the buildings acting as the visual anchor.  Its elevations, emphasize architectural bays, three or four bays depending on the elevations.  The result is a weighty building heightened by the architectural framework and a variety of projections.

Continuing north, the Headquarters contains office space and is a 5 storey elongated rectangle in plan.  Combined with a gridded framework set between a darker base and a subtly recessed upper storey it emphasizes its length in contrast with the Data Centre.

Connecting all the components together is a transparent link that connects at the north end of the Headquarters, to near the middle of the Data Centre and to the  middle of the Cafeteria threading each piece together.

Just beyond the headquarters is the Cafeteria resting on the northern edge of the built complex set in its own pavilion.

Overall the complex suits its suburban location while at the same time acknowledging the ground plane with the darker and set back ground floor.  As a result of its location a large surface parking lot occupies the largest percentage of the site and the site is encircled by various ramps and roads demonstrating a clear bias towards the automobile.  Generally, the complex possesses a subtle architectural quality but the inherent bias in its location will affect the ability for the building to be appreciated as a building with heritage character and it possessing one of the most architecturally layered facades of any building, from any period, in the National Capital Region.  The building has received draft designation as a Recognized Federal Heritage Building.
